Products / Structural Analysis / BeamCore
Structural Analysis Coming 2027
BeamCore

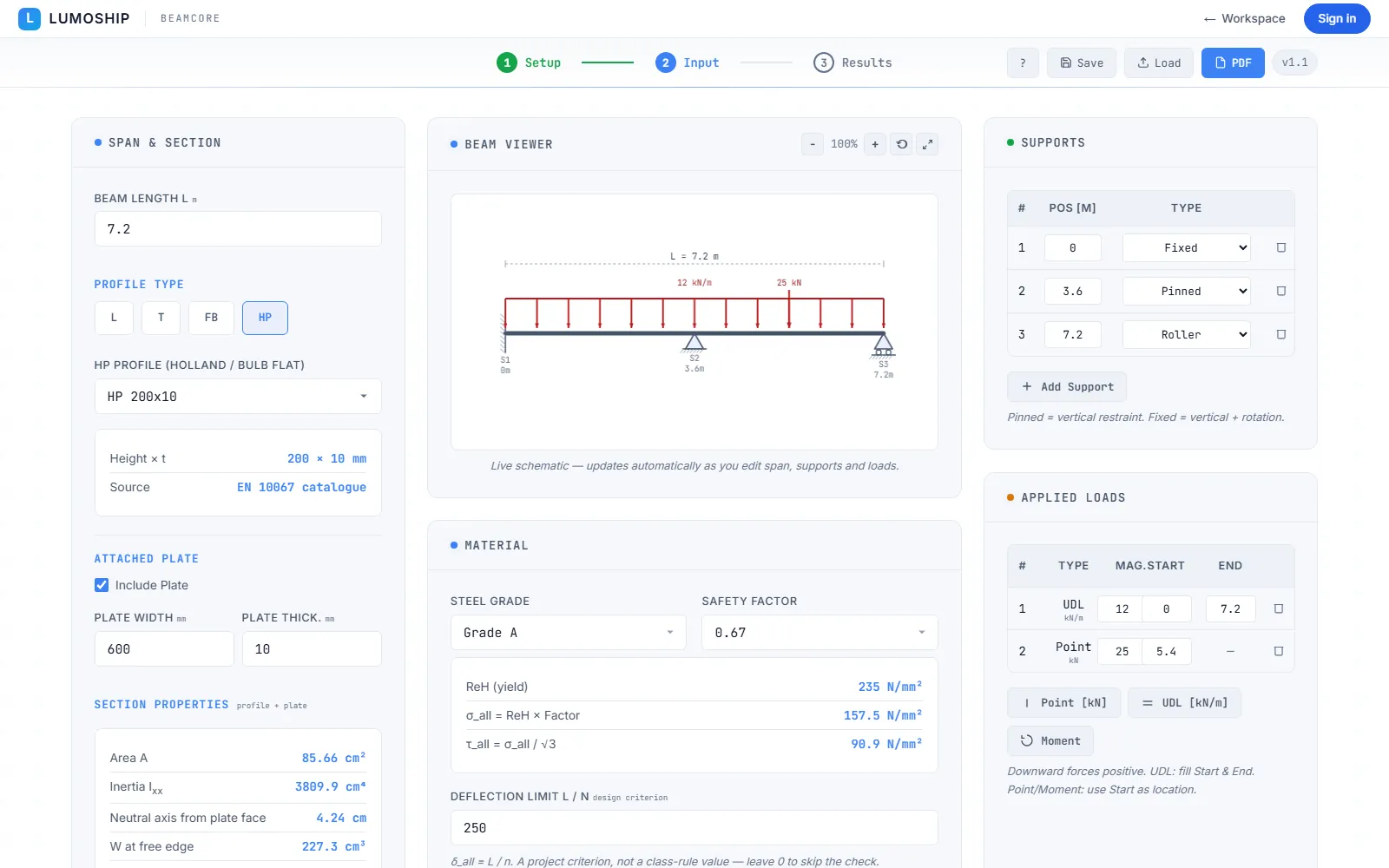

Beam analysis for ship stiffeners and girders: multi-span and statically indeterminate beams, pinned, roller or fixed supports, point and distributed loads, bulb flat, L, T and flat bar profiles with attached plating, and a PDF calculation sheet.
EN 10067AH32 / AH36
In development. Free to use from launch until the end of 2027.
What it does
The feature set being built and verified for the first release.
- Direct stiffness method, Euler-Bernoulli beam elements
- Statically indeterminate and multi-span continuous beams
- Pinned, roller and fixed supports at any position
- Point loads, distributed loads and applied moments
- L, T, flat bar and EN 10067 bulb flat profiles
- Shipbuilding steel grades A, AH32, AH36
- Attached plating combined with the profile

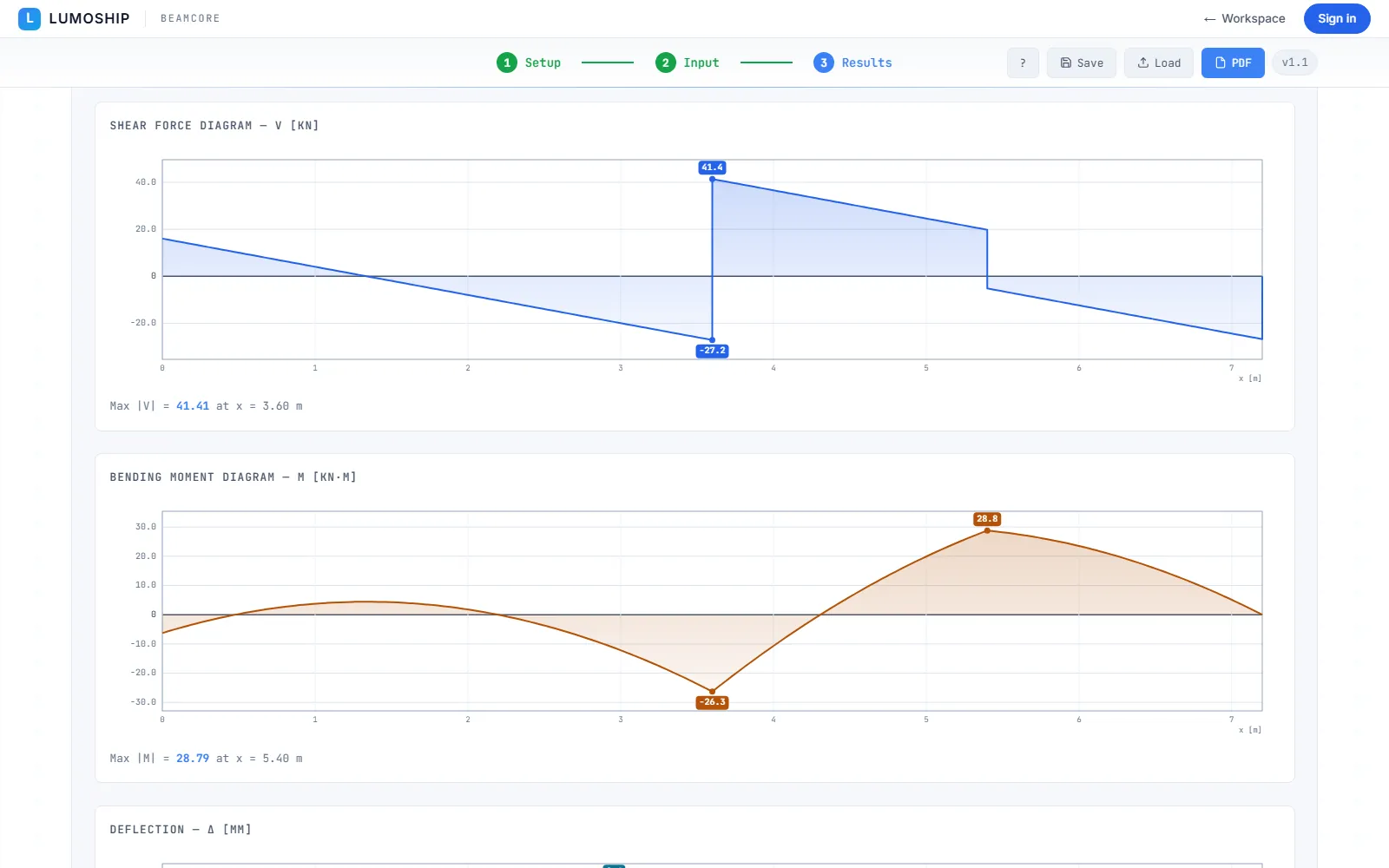

- Shear force, bending moment and deflection diagrams
- PDF calculation sheet
Release and pricing
The same for every Lumoship tool.
Now
In development. Each check is compared with the rule text and with reference software before release.
2027
The tools open one by one in the browser — no install, no licence server.
Until end of 2027
Free to use. Paid plans start in January 2028; see pricing.
